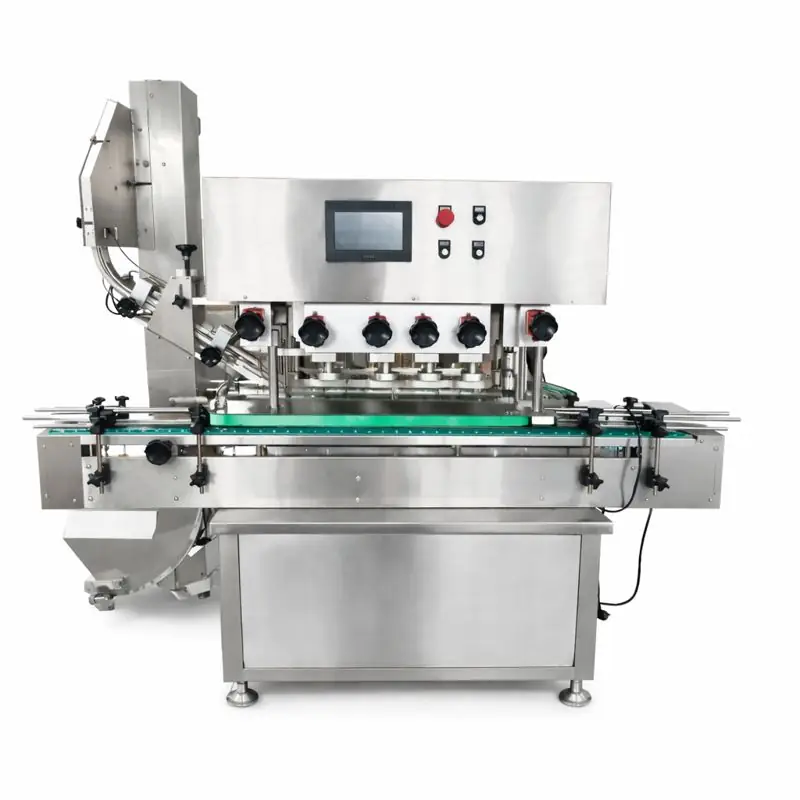

High Speed Spindle Capping Machine for Automatic Bottling Lines
High-Speed Spindle Capper for Bottling Lines
This high speed spindle capping machine uses multiple spindle wheels to tighten caps through controlled friction. Equipped with an automatic cap feeding system, it is designed for continuous inline bottle capping in high-speed bottling lines.
Multi-spindle capping with controlled friction tightening and automatic cap feeding for continuous inline bottle capping on high-speed bottling lines
- Continuous inline bottle capping structure
- Eight-spindle wheel tightening system for stable cap sealing
- High-speed operation for automated bottling lines
- Compatible with screw caps and tamper-evident caps
- PLC and touchscreen control for easy adjustment
- Continuous inline bottle capping
- 8-spindle tightening Β· stable sealing
- High-speed operation for bottling lines
- Screw & tamper-evident caps
- PLC + touchscreen control
Bottle Type
Cap Type
Capacity
Structure
Explore Other Bottle Capping Machine Models
Explore other bottle capping machine models designed for different cap types, bottle sizes, and production capacities.
Explore bottle capping machines for different cap types and bottle sizes
High Speed Spindle Capping Machine Technical Specifications
The following specifications outline the key technical parameters of the high speed spindle capping machine, designed for continuous inline bottle capping in automated bottling lines.
This automatic spindle capping system uses multiple spindle wheels to tighten caps through controlled friction, ensuring stable sealing performance and high production efficiency.
Technical Specifications
- Machine TypeοΌHigh-Speed Automatic Spindle Capping Machine
- Bottle Type: Round & Square Bottles
- Cap Type: Screw Cap / Tamper-Evident Cap
- Capacity: 60β120 bottles/min
- Capping Structure: Inline Continuous Motion
- Tightening SystemοΌ Multi-Spindle Wheel Friction Tightening
- Control System: PLC with Touchscreen Interface
- Power Supply: 220V / 380V, 50/60Hz
- Air Supply: 0.6 MPa
This high speed spindle capping machine uses multiple rotating spindle wheels to tighten caps through controlled friction. The inline continuous-motion design allows bottles to move without stopping while ensuring stable and reliable cap tightening for high-speed production lines.
Technical Specifications
- Type: High-speed spindle capper
- Bottles: Round & square
- Caps: Screw Β· tamper-evident
- Speed: 60β120 bottles/min
- Capping: Inline continuous motion
- Tightening: Multi-spindle friction
- Control: PLC + touchscreen
- Power: 220V / 380V, 50/60Hz
- Air Supply: 0.6 MPa
Multi-spindle friction capping for high-speed continuous bottle capping with stable, reliable tightening
Key Components of the Spindle Capping System
Multiple spindle friction wheels apply controlled torque to tighten caps smoothly while bottles move continuously along the conveyor. This system ensures stable and efficient bottle capping for high-speed production lines.
Key Features and Working Principle of the High Speed Spindle Capping Machine
- Continuous inline bottle capping structure
- Multi-spindle wheel friction tightening system
- High-speed operation for automated bottling lines
- Compatible with screw caps and tamper-evident caps
- Automatic cap feeding and positioning system (optional)
- PLC and touchscreen control for easy adjustment
- SUS304 stainless steel hygienic machine structure
- Eight-spindle wheel tightening system for stable cap sealing
- Continuous inline bottle capping
- Multi-spindle friction tightening Β· stable sealing
- High-speed operation for bottling lines
- Screw & tamper-evident caps
- Automatic cap feeding & positioning (optional)
- PLC + touchscreen control
- SUS304 stainless steel structure
Working Principle of the Spindle Capping Machine
In the spindle capping machine, bottles move continuously along the conveyor while caps are automatically fed and positioned onto the bottles.
Multiple rotating spindle wheels apply controlled friction to tighten the caps as the bottles pass through the capping station.
This inline continuous-motion design ensures stable and efficient bottle capping without stopping the conveyor, making the machine ideal for high-speed bottling lines.
Continuous inline capping with automatic cap feeding and positioning.
Multi-spindle friction tightening ensures stable, efficient operation.
Why Choose Our Spindle Capping MachineοΌ
Designed for reliable cap tightening and high-speed bottle capping in automated production lines.
Reliable cap tightening and high-speed bottle capping for automated production lines
Stable Torque Control
Ensures consistent and reliable cap tightening for different bottle types.
High-Speed Inline Operation
Designed for continuous bottle capping in automated bottling lines.
Wide Cap Compatibility
Suitable for screw caps and tamper-evident caps.
Industrial Build
SUS304 stainless steel frame for long-term industrial operation.
Applications of the Spindle Capping Machine
Ideal for high-speed bottle capping in pharmaceutical, food, beverage, and chemical packaging lines.
High-speed bottle capping for pharmaceutical, food, beverage and chemical lines
Pharmaceutical & Healthcare
Reliable bottle capping for pharmaceutical and healthcare packaging lines.
Food & Beverage
High-speed bottle capping for beverage, sauce, and food packaging applications.
Chemical & Daily Products
Efficient bottle sealing for chemical, detergent, and daily-use packaging.
Frequently Asked Questions
What types of bottles can the spindle capping machine handle?
The spindle capping machine is suitable for plastic and glass bottles, including round, square, and specially shaped containers used in beverage, pharmaceutical, food, and chemical industries.
What types of caps are compatible with the spindle capping machine?
This machine supports various cap types including screw caps and tamper-evident caps. The spindle wheels can be adjusted to accommodate different cap sizes.
What is the production capacity of the spindle capping machine?
The production capacity typically ranges from 60 to 120 bottles per minute depending on bottle size, cap type, and production line configuration.
Does the machine stop the bottles during capping?
No. The spindle capping machine works in continuous inline motion, allowing bottles to move along the conveyor while the spindle wheels tighten the caps.
Is the capping torque adjustable?
Yes. The tightening torque can be adjusted by controlling the spindle wheel pressure and speed to ensure stable cap sealing.
The spindle capping machine ensures stable torque control and efficient high-speed bottle capping for automated bottling lines.
Explore Other Bottle Capping Machine Models
πΉSingle Head Rotary Capping Machine
Compact rotary capping machine ideal for small to medium bottle production lines.
πΉ Double Head Rotary Capping Machine
Double-head rotary capping system designed for higher bottle capping output.
πΉ Servo Tracking Capping Machine
Servo tracking capping machine designed for continuous high-speed bottling lines.
Find the Right Spindle Capping Machine for Your Production Line
Tell us your bottle type, cap style, and required production speed.
Our engineers will recommend the most suitable spindle capping machine for your production line.
Pharmaceutical GMP Industry Standards
This automatic capping machine is designed in accordance with GMP standards, ensuring stable and reliable capping performance.
For general reference on GMP standards, you may refer to relevant industry guidelines.
Widely used in pharmaceutical, cosmetic, and chemical production lines for secure and consistent bottle capping.
Built to meet GMP standards for hygienic, reliable production.
